Trigger sprayer compatibility comes down to three non-negotiables: the neck finish has to match the bottle exactly, the wetted-part materials have to survive your formula, and the dip tube plus output per stroke have to fit the bottle and the dose you need. Get any one of those wrong and you're looking at leaks, seal failure, or a spray pattern that ruins the customer experience. Before you place an order, measure the bottle's finish and ask your supplier for a wetted-parts material list and a sample for soak testing.
TL;DR:
- Matching the trigger sprayer's neck finish code exactly to the bottle's specifications prevents leaks and seal failures during use.
- Measuring the outer diameter with calipers and confirming thread details in writing avoids costly mismatches, especially between common sizes like 28/400 and 28/410.
- Ensuring the dip tube length includes a quarter-inch clearance and customizing it for tall or angled bottles prevents clogging or product loss.
- Verifying wetted-part materials against your formula with a soak test and requesting full material documentation reduces compatibility issues and prolongs product life.
- Conducting leak, immersion, and actuation cycle tests before large-scale production ensures reliable performance and helps prevent costly recalls.
Table of Contents
- How to Read and Match Bottle Neck Finishes (28/400, 24/410, and Beyond)
- Dip Tube Length and Fit: Measuring, Modifying, and Special Cases
- Chemical and Material Compatibility: Which Elastomers and Plastics Survive Which Chemistries
- Spray Patterns, Nozzle Architecture, and Output Per Stroke
- How to Verify Performance: Minimum Test Protocols for Procurement and QA
- Selection Checklist: A Copyable Spec for RFQs and Purchase Orders
- How Sarawest USA Helps With Compatibility Testing and Pilot Runs
- Author Viewpoint: One Procurement Mistake to Avoid
- Get Your Formula Sample-Tested and Piloted With Sarawest USA
- Sources
How to Read and Match Bottle Neck Finishes (28/400, 24/410, and Beyond)
Every trigger sprayer finish code has two parts. The first number is the neck's outer diameter in millimeters. The second is a style code tied to thread depth, thread count, and sealing surface. A 28/400 finish is not interchangeable with a 28/410, even though both measure 28mm across, because the thread geometry and sealing height differ enough to cause a loose fit or a stripped closure. Sarawest USA has written specifically about the 28/400 versus 28/410 mismatch because it is one of the most common production errors we see from brands sourcing bottles and closures from different vendors.
Neck finishes must match exactly, and the market's two most common sizes, 28/400 and 24/410, cover a huge share of household and personal care packaging. That doesn't mean you can eyeball it.
Before you sign off on any order:
- Measure the outer neck diameter with calipers, not a ruler.
- Count the thread starts and check thread pitch against the bottle spec sheet.
- Confirm the finish code with your bottle supplier in writing, not from memory.
- Test-fit one sprayer on one bottle before the full shipment arrives.
Buying by diameter alone is the most expensive mistake in this category. Two finishes can share a diameter and still fail to seat correctly.
Dip Tube Length and Fit: Measuring, Modifying, and Special Cases
A dip tube that's too long scrapes the bottle bottom and clogs the intake. One that's too short leaves product stranded and skews your cost-per-unit math on every batch.
- Measure from the sealing surface of the finish to the bottle's interior bottom, then subtract about a quarter inch of clearance so the tube never drags.
- Trim with a sharp utility blade or dedicated tube cutter, cutting the tube at a slight angle to help it draw product from corners.
- Request a custom dip tube length for tall, narrow bottles, angled-neck designs, or any product meant to be used upside down.
- Consider a flexible, bendable dip tube for bottles with irregular bases, since a rigid tube can't follow a curved or stepped bottom.
Standard adjustable dip tubes on the market often ship around nine inches with room to trim down, which covers most 16 to 32 ounce bottle formats without a custom order.
Chemical and Material Compatibility: Which Elastomers and Plastics Survive Which Chemistries
This is where most compatibility failures actually happen, and it has nothing to do with the neck finish. It's about what the pump, seals, and springs are made of and whether your formula eats them alive over time.
Standard wetted-part materials include:
- Polypropylene (PP) for housings and dip tubes, prized for broad chemical resistance and low cost.
- Polyethylene (PE) for softer, flexible components.
- Polyoxymethylene (POM) for structural parts needing rigidity and low friction.
- PTFE for gaskets exposed to the harshest chemistries.
- NBR (nitrile rubber) for general-purpose seals in mild formulas.
- EPDM for bleach, alkaline cleaners, and water-based formulas.
- Viton (FKM) for solvents, hydrocarbons, and aggressive oxidizers.
Chemical-resistant trigger sprayers typically pair all-PP construction with EPDM or Viton seals, with Viton reserved specifically for formulas containing hydrocarbons or solvents that would swell or degrade EPDM over time. Acids and alcohols push the same direction, toward PTFE-lined components rather than standard nitrile.
Metal springs are the quiet failure point nobody checks until it's too late. A spring corroding inside a bleach-based cleaner will discolor the product and eventually snap. Ask about plastic C-spring alternatives, which sidestep corrosion entirely and, as an added benefit, tend to be easier to recycle at end of life.
Pro Tip: Never take a supplier's word on material compatibility without paper behind it. Request the full wetted-parts material list, the MSDS for every elastomer touching your formula, and commit to a 30-day soak test before you commit to a production run.
Spray Patterns, Nozzle Architecture, and Output Per Stroke
The nozzle you choose should match how the product gets used, not just how it looks on a shelf. A precision stream nozzle suits spot treatments and degreasers where you want to hit one exact spot. A broad spray or adjustable pattern works for general surface cleaners covering wide areas fast. Fine mist heads suit personal care and linen sprays where droplet size affects skin feel or fabric saturation.
Foamers are their own category entirely. Foaming demands specific pump and air-entrainment architecture working in tandem with a surfactant system built for it. You can't retrofit foam onto a standard trigger head.
- Standard trigger pumps typically dispense a smaller output per stroke than heavy-duty industrial models.
- Use your product's output per stroke to back into dilution ratios and per-application cost.
- Choose fine-mist pumps for personal care and fabric care; choose standard or heavy-duty triggers for surface cleaning and degreasing.
How to Verify Performance: Minimum Test Protocols for Procurement and QA
Skipping testing to save a week of lead time is how brands end up recalling a batch three months later. Run these three checks at minimum before scaling up.
- Leak test. Fill the assembled bottle and sprayer, invert and hold for a set period, and reject any unit showing visible seepage at the seal or dip tube connection.
- 30-day immersion compatibility test. Submerge wetted parts in your actual formula at realistic concentration and storage temperature, then inspect for swelling, cracking, discoloration, or softening.
- Actuation cycle test. Run a sample sprayer through repeated actuations and track whether the dose per stroke drifts as springs and seals wear.
Both the immersion test and actuation cycle testing are treated as standard industry checks rather than optional extras, and any supplier worth ordering from should have test reports on file already.
Pro Tip: Ask for the actuation cycle count the supplier tested to, not just a pass/fail summary. A sprayer rated for 5,000 cycles behaves very differently from one tested to 500.
Selection Checklist: A Copyable Spec for RFQs and Purchase Orders
Paste this into your next request for quote so nothing gets left to interpretation:
- Neck finish code and torque specification
- Dip-tube length (measured, with clearance) or custom-cut request
- Full wetted-materials list, including elastomer type
- Output per stroke, in milliliters or ccs
- Actuation cycle test report and leak test results
- Overcap or child-lock requirement, if applicable
If sustainability matters to your brand, ask about PCR resin content and color-coded triggers for multi-SKU lines. Both are increasingly available without a material compatibility trade-off.
How Sarawest USA Helps With Compatibility Testing and Pilot Runs
Sarawest USA's in-house chemists run sample compatibility testing against real formulas, not generic reference chemicals, then move straight into pilot batches once the fit is confirmed. Send a sample, get a scoped test plan, and walk away with a test report and a pilot run ready to scale. This section is written by Faisal Mansur, drawing on the testing standards outlined above.
Author Viewpoint: One Procurement Mistake to Avoid
The costliest mistake I see is brands buying trigger sprayers from mixed-stock resellers with no batch test records attached. You have no idea what elastomer actually shipped in that lot. Request your own sample and run the soak test yourself.
— Faisal Mansur

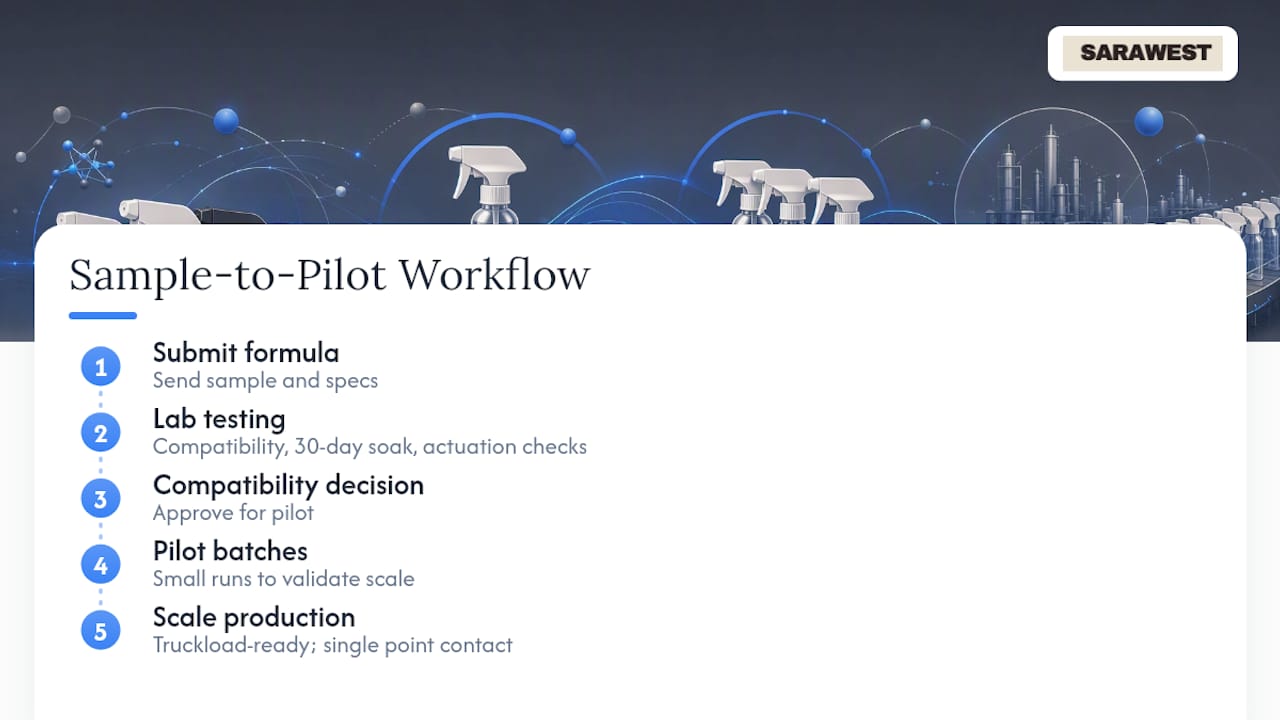

Get Your Formula Sample-Tested and Piloted With Sarawest USA
Sarawest USA is the alternative to guessing your way through a reseller catalog. Send us your formula, and our in-house chemists run sample compatibility testing, accelerated 30-day soak tests, and actuation cycle checks against your actual chemistry, not a generic reference fluid.
From there, we move straight into pilot batches, so you're not waiting on a separate vendor once compatibility is confirmed. That means one point of contact from formula tweak to a truckload-ready production run, whether you're launching a private-label cleaner or scaling an existing formula into a new package format.
Explore our contract manufacturing capabilities to see how fast a sample-to-pilot timeline can move, or browse past formulation work before you submit your specs. Request a quote today and get your first sample soak test scheduled this week.
